VGA+Yprpb to HDMI Converter

Specification:

Support input………………………………………………………………………………RGB

Support VGA input ………..….…800×600@60HZ,1024×768@60HZ,1280×1024@60HZ

Support resolution up to…………………………………………………………..……..1250lines

Max refresh rate…………………………………………………………………...…………..75HZ

Input Video signal ………….…………………………..………………………..0.5~2.0Volts p-p

Output video signal…………………………………………………………….-0.35~0.7Volts p-p

Max working current………………………………………………………………………...800mA

Output cable distance…………………………….…….....<=20m AWG26 HDMI standard cable

Power adapter format……………......Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….………………………………… (-15 to +55 Centigrade)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Demension (LxWxH) ………………………….….……….178x65x27 (mm)

Weight………………………….….……….390g

Features:

1. One YPbPr input.

2. One VGA input.

3. R/L analog audio input.(can’t be used with stereo Mini-Jack audio at the same time).

4. 3.5mm Stereo Mini-Jack audio input.(can’t be used with R/L audio input at the same time).

5. One HDMI signal output.

6. Support input up to 1080P via component.

7. Support VGA input : VGA@60,VGA@75,XGA@60HZ,XGA@75,SXGA@60HZ,SXGA@75HZ,SVGA@60,SVGA@75,1280X768@60.

8. HDMI output resolution:720P/ 60Hz.

9. Adaptive PAL / NTSC standard.

10. LED indication : when source or sink is working, LED relative to is light.

11. Inputs can be switched with the IR remote control,also can be controlled by button.

12. Support output up to 20metres AWG26 cable length

13. Need DC5V/2A power supply.

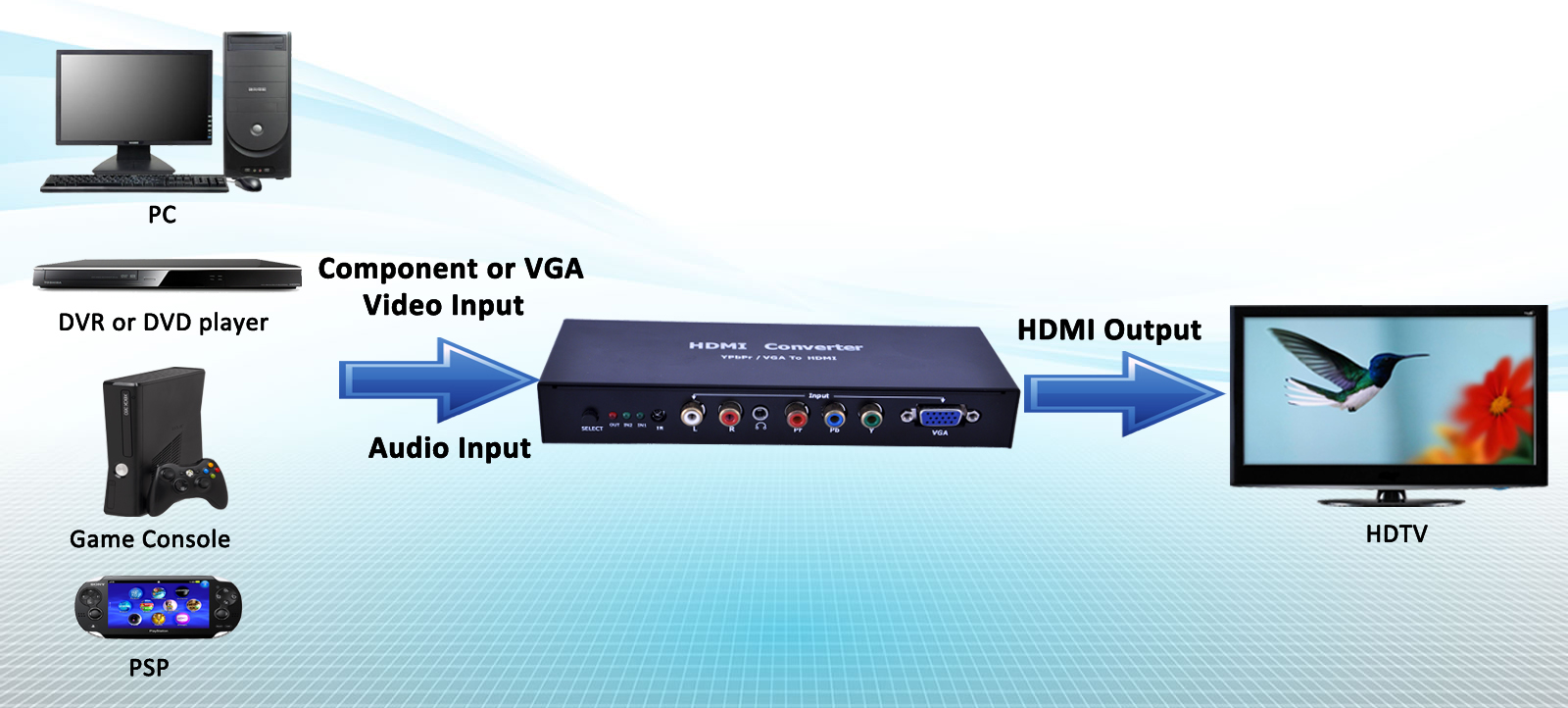

Sketch map
