HDMI switch 3 to 1

Specifications:

HDMI version …………………………………………………………......………….. HDMI 1.4A

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ……………………..............……..……… 8/10/12 bit deep color,

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………..…………………………………….250MHz

Max baud rate……………….…….………………….…………………………………..2.25Gbps

Input cable distance..…... …………………………..……≤20m AWG26 HDMI standard cable

Output cable distance………………………………….…...≤10m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....500mA

Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………...……………………… (-15 to +55)

Dimension (L x W x H) ……………………………….…….......…………………128x53x20 (mm)

Weight…..……………………………………………………...…..…….………………………140g

Features:

Support 2.5Gbps data rate for tmds clock up to 250MHz

Support HDMI1.4a

Support 3D video fomats over HDMI

Supports highest video resolution 1080p/60Hz

Support UXGA,WUXGA

Support 8/10/12 bit deep color

Support input up to 20 metres AWG26 HDMI standard cable length, output up to 10metres

AWG26 cable length

Supports single high definition display for multiple sources, such as DVD Players

and Stellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes

.Need DC5V/1A power supply.

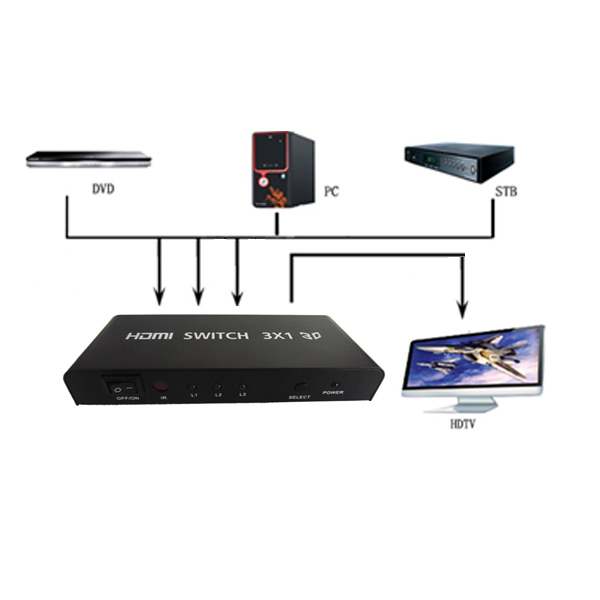

Sketch map
