HDMI Matrix 4x2

HDMI Matrix 4x2

HDMI Matrix 4x2
Specifications:
HDMI resolution.....................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format.........................24bit/deep color 30bit,36bit
Support audio format..................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth............................................225MHz
Max baud rate..............................................6.75Gbps
Input/Output TMDS signal.............................0.5~1.5Volts p-p(TTL)
Input/Output DDC signal...............................5Volts p-p (TTL)
Input cable distance......................................<=15m AWG26 HDMI standard cable
Output cable distance...................................<=25m AWG26 HDMI standard cable
Max working current......................................900mA
Power adapter format Input...........................AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range........................-15 to +55 Centigrade
Operating Humidity range...............................5 to 90%RH (No Condensation)
Dimension(L x W x H).....................................260x114x45 (mm)
Weight..............................................................1040g

Features:
1. Four HDMI input signals switched or split to two HDMI sink devices
2. Support CEC and HDCP1.2
3. Support deep color 30bit, 36bit
4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
5. Support signal retiming
6. Support input up to 15metres AWG26 HDMI standard cable length, output up to 25metres AWG26 cable length
7. Inputs can be switched with the IR remote control,also can be controlled by two buttons.?/div>
8. It can smartly jump over those input sources which are not connected.
9. With the smart function of memory, it can come back to the latest status when restarted or reconnected.
10. No loss of quality.
11. Need DC5V/2A power supply.

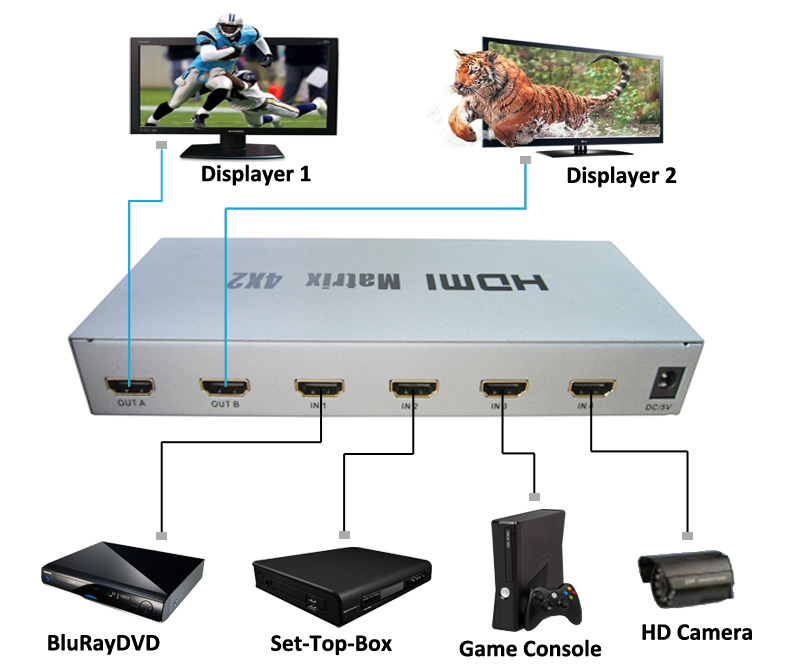

Sketch map
