45m HDMI Repeater
45m HDMI Repeater
Specifications:
1.HDMI is compliant with HDMI 1.3
2.HDMI HDCP is compliant with HDCP 1.1
3.Operation frequency:up to 165MHz
4.HDMI data rate:1.65G bps(Single link)
5.Input/output resolution:
HD:480i@60Hz,576i@50Hz,480p@60Hz,576p@50Hz,720p@60Hz,720p@50Hz,1080i@60Hz,1080i@50Hz,1080p@60Hz,1080p@50Hz,1080p@30Hz,1080p@25Hz,1080p@24Hz
6.Support 3D
7.Cable Distance Support:Over 40m with twisted-pair
8.Dimensions(W*H*D):28X13X51mm
Note:Different cable quality may affect-the maximum resolution and transmission
distance.
Features
Features
It regenerates the incoming HDMI signal by decoding and re-encoding it to a new standard HDMI signal so it can extend the transimission range without degradation.
Extends 1080p up to 40 meter transmission distance(lower resolution signal can be transimitted longer).
No power,Plug and play,easy to install.

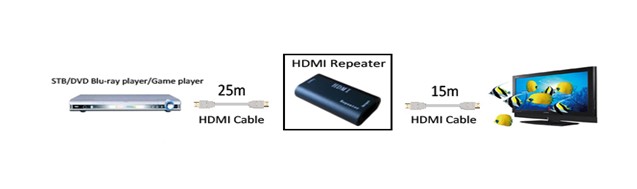

Sketch map
Sketch map
